Δευτέρα 1 Νοεμβρίου 2010

Τα καλύτερα scanners : AOR- Από τα πρώτα μοντέλα μέχρι σήμερα...

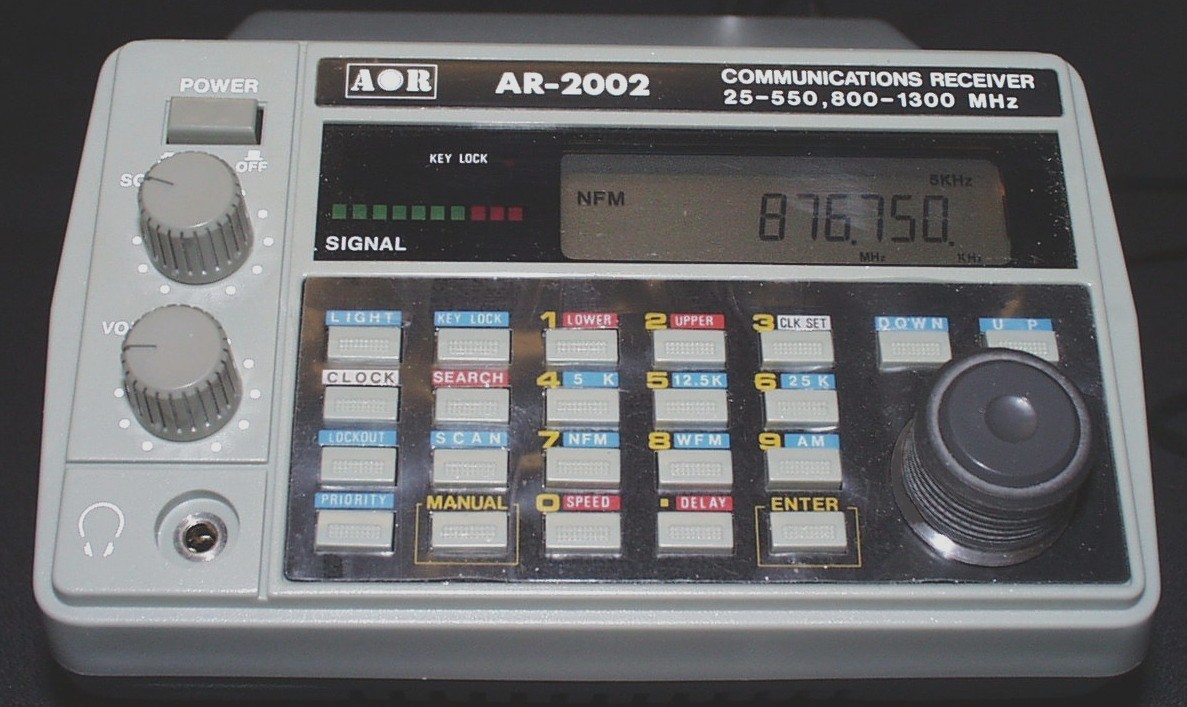

Receive Frequency25 - 550 Mhz., 800 - 1300 Mhz.
Receive SensitivityNarrow FM: 0.3 microvolt (12 db SINAD)
Wide FM: 1.0 microvolt (12 db SINAD)
AM: 0.5 microvolt (10 db S/N)
Receive SelectivityNFM +/-7.5 khz. @ 6 db +/-20 khz. @ 70 db
WFM +/-50 khz. @ 6 db +/-250 khz. @ 60 db
AM +/-5 khz. @ 6 db +/-10 khz. @ 70 db
Image and Spurious Rejection-50 db
Number of Channels20
Intermodulation-50 db
Receiver CircuitryPLL Synthesizer
Scanning Rate5 channels/sec.
Searching Rate1 Mhz./6 sec.
Audio Output1 w @ 10% distortion
Power Requirement12 - 14 VDC
Method of DisplayLCD
Dimensions138 x 80 x 200 mm
Weight1.2 KG
AR8600 Image

Main Features of the AR8600 are:
  • All mode receive and wide frequency coverage.
  • 'All New' front end and RF stages, this provides superior sensitivity and higher dynamic range.
  • Operation similar to the trendsetting AR8200 but circuit design is very different thanks to increased availability of space within the cabinet.
  • Five (5) optional SLOT CARDS (as used on the AR8200) may also be 'simultaneously' fitted with the option to select two to operate.
  • 8.33kHz airband channel spacing.
  • RS232 port is internally fitted as standard.
  • Optional Collins mechanical filters
  • A wide 10.7MHz i.f. output is provided for compatibility with the SDU5500 spectrum display unit.
  • Aerial input is via a BNC socket.
  • Internal Nicad Battery Pack option for mobile use
  • 12V d.c. operation.
  • _____________________________________________
  • AOR AR8600 Mark2
Communications Receiver
______________________________________________________________________

Και το νεότερο μοντέλο :

M.A.R.C-review
